Enerji Santralleri TEİAŞ RTU Haberleşmesi

TWithin the scope of TEİAŞ National Load Dispatch SCADA / EMS System Project, it is necessary to establish a communication system between power generation plants and autoproducer licensed energy facilities (Hydro Power Plants, Wind Power Plant, Thermal Power Plant) and TEİAŞ SCADA system. TEIAS communication infrastructure and SCADA solutions for the transportation sector and HEPP-RES-Thermal Power Plants.
OPGW Communication, PAX Communication, Rental Line communication, PLC communication, RTU system are among the solutions offered.


SDH STM1 products E1, E70, E3, E & M, FXS, FXO, G.703-64K Codirectional, RS-232, V.24, V.35 and Ethernet ports on the same chassis.

Communication between the National Control Center, the Emergency Control Center and the Regional Control Centers is carried out through the channels leased from Türk Telekom Company, satellite channels (VSAT) and TEDAŞ's own fiber optic channels.


In order to increase the reliability of data communication, redundant communication channels are used between MKM and BKMs and between BKMs and RTUs.


Data communication between Regional Control Centers and RTUs is carried out via power transmission lines (PLC) channels, TEDAS's fiber optic channels and channels leased from Türk Telekom A.Ş.
Data communication speeds of 200, 600, 1200, 2400, 9600 and 19200 bps are used between BKMs and RTUs. RTU links are controlled via Telecontrol Interfaces (TCI) in point-to-point or multidrop (party-line).
The data communication protocol used between the Control Centers is the IEC 6087086 (Inter Control Center Protocol) communication protocol. The RTUs and the control centers use the IEC 60870-5-101 communication protocol for the new type of RTUs and the F4F communication protocol for the old RTUs.





Remote Terminal Units (RTU)



The information collected by the RTUs in the substation and power stations is processed and sent to the Regional Control Centers and then to the National Load Dispatch and Emergency Center. Control signals sent from control centers are also transmitted to power stations and substations via RTUs.


Active and reactive power values ​​of power stations, busbar voltage values, transformer tap changer position information, current and frequency measurements from some centers, some additional data related to power plants, breaker, separator.

The data needed for the monitoring and operation of the National Interconnected Power Network, such as grounding information and alarm information and energy measurements, are collected.
In general, analogue measurements are sent to the control center every 10 seconds when the threshold is exceeded, while status and alarm information is sent when there is a change of status. Time-tag information for status and alarm information is also sent to the control center.

The RTUs send the occurrence time of the status changes to the relevant Regional Control Center as a-time-tag RT. New RTUs have a resolution of 1 millisecond and remote control to tag status and alarm information

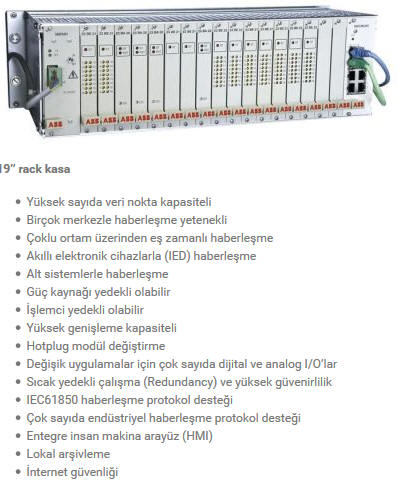

ABB RTU560



With its wide range of UMUX products, TEİAŞ has solutions that can meet all the communication requirements on OPGW cables.
UMUX and XMP products, which can offer SDH and PDH in a single chassis, are the preferred solutions in TEIAS OPGW projects with high price performance rates and wide references.

The STM1, E & M, FXO, FXS, G.703 interfaces are available in a single product.
Teleinformation system RTU High performance in load communication.
Wide range of RTU, SDH, PDH, MUX products.
